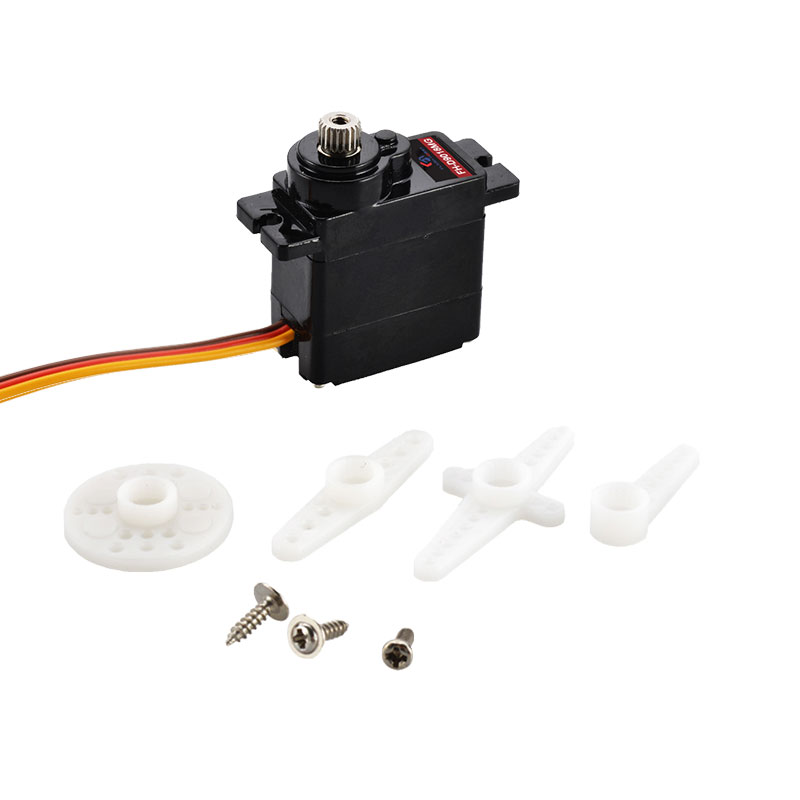

Micro Servo

  • Published:
  • Views:193
  • By:Lithuanian Trade

A micro servo refers to a small-sized servo motor commonly used in hobbyist projects, robotics, and remote-controlled (RC) vehicles. Servo motors are devices that provide precise control of angular or linear position, velocity, and acceleration. They are widely used to control movement in various mechanical systems.

A micro servo typically consists of a small DC motor, a set of gears, a control circuit, and a position feedback mechanism. The control circuit receives signals from an external source, such as a microcontroller or a remote control receiver, and translates those signals into precise movements of the motor.

Here are some key features and characteristics of micro servos:

1. Size: Micro servos are compact in size and generally have dimensions in the range of approximately 20mm x 20mm x 10mm (length x width x height). Their small size makes them suitable for applications where space is limited or weight needs to be minimized.

2. Torque: Micro servos usually have lower torque compared to larger servo motors. The torque output typically ranges from a few ounces to several ounces per inch (oz-in), depending on the specific model.

3. Speed: Micro servos are generally faster compared to larger servos due to their smaller size and reduced inertia. The speed of a servo is typically measured in terms of the time taken to move a specific angle (e.g., degrees per second).

4. Control Signals: Micro servos commonly operate using pulse width modulation (PWM) signals. The control signal, usually generated by a microcontroller or RC receiver, determines the desired position or angle of the servo. The PWM signal typically consists of a pulse with a duration between 1 to 2 milliseconds, where the pulse width corresponds to the desired position.

5. Mounting: Micro servos often have mounting holes or brackets built into their design, allowing for easy installation in various projects or mechanical systems.

Micro servos are widely used in hobbyist projects and robotics due to their small size, affordability, and ease of integration. They can be utilized for tasks such as controlling the movement of robotic arms, animatronics, RC vehicle steering, camera stabilization systems, and more.

When working with micro servos, it's important to consider the power requirements, mechanical limitations (such as the maximum rotational range or load capacity), and the specific control signals needed for your project. Consulting the datasheet or manufacturer's specifications of the micro servo you are using will provide valuable information regarding its operating characteristics and limitations.
