Understanding Hydraulic Cylinders – The Power Behind Modern Machinery

Hydraulic cylinders are the unsung heroes of many industries, powering a wide range of machinery from construction equipment to industrial presses. Their ability to generate immense force in compact systems makes them indispensable in applications requiring precision and power.

What is a Hydraulic Cylinder?

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear motion and force. It consists of key components such as:

- Cylinder Barrel: The tube that houses the piston.

- Piston and Piston Rod: The moving parts that transfer force.

- Seals and Gaskets: Ensure leak-proof operation.

How Does It Work?

Hydraulic cylinders operate based on Pascal's Principle, which states that pressure applied to a fluid in a confined space is transmitted uniformly in all directions. When hydraulic fluid enters the cylinder, it pushes against the piston, creating linear motion.

Types of Hydraulic Cylinders

1. Single-Acting Cylinders: Fluid operates on one side of the piston, with gravity or a spring returning it to its original position.

2. Double-Acting Cylinders: Fluid can be applied on both sides of the piston for movement in both directions.

3. Telescopic Cylinders: Feature multiple stages for extended reach, often used in lifting applications.

Applications of Hydraulic Cylinders

Hydraulic cylinders are vital in many sectors, including:

- Construction: Excavators, loaders, and cranes rely on cylinders for movement.

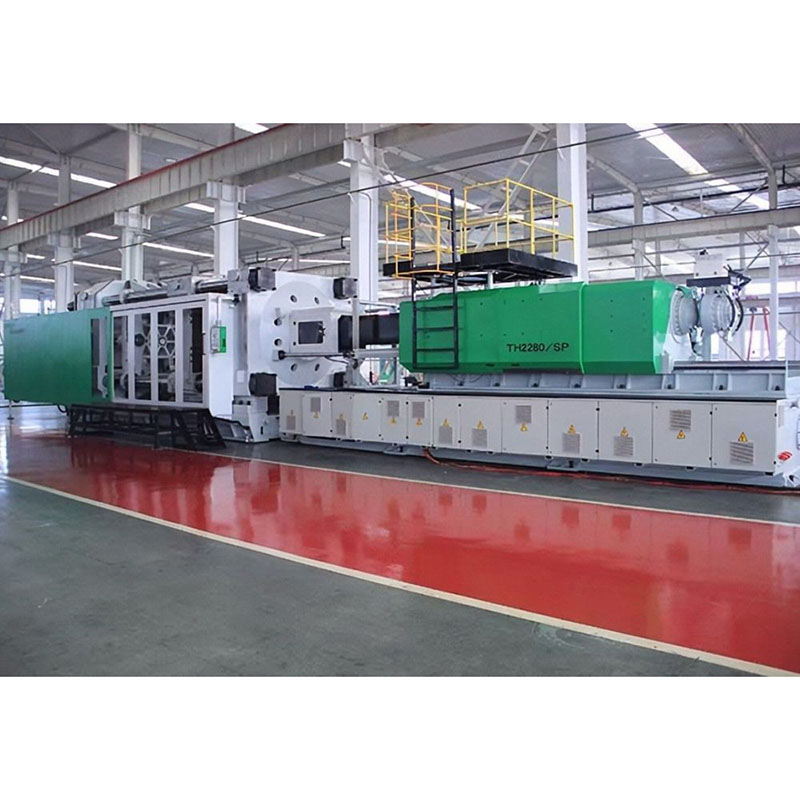

- Manufacturing: Industrial presses and molding machines use cylinders for precision.

- Agriculture: Tractors and harvesters depend on cylinders for lifting and steering.

- Automotive: Hydraulic lifts in garages and production lines are cylinder-driven.

Advantages of Hydraulic Cylinders

- High Power Output: Compact systems can deliver tremendous force.

- Precision Control: Smooth and accurate motion.

- Durability: Built to withstand high pressures and demanding conditions.

Conclusion

Hydraulic cylinders are a cornerstone of modern engineering, offering unmatched power and versatility. By understanding their operation and applications, industries can maximize productivity and efficiency.
