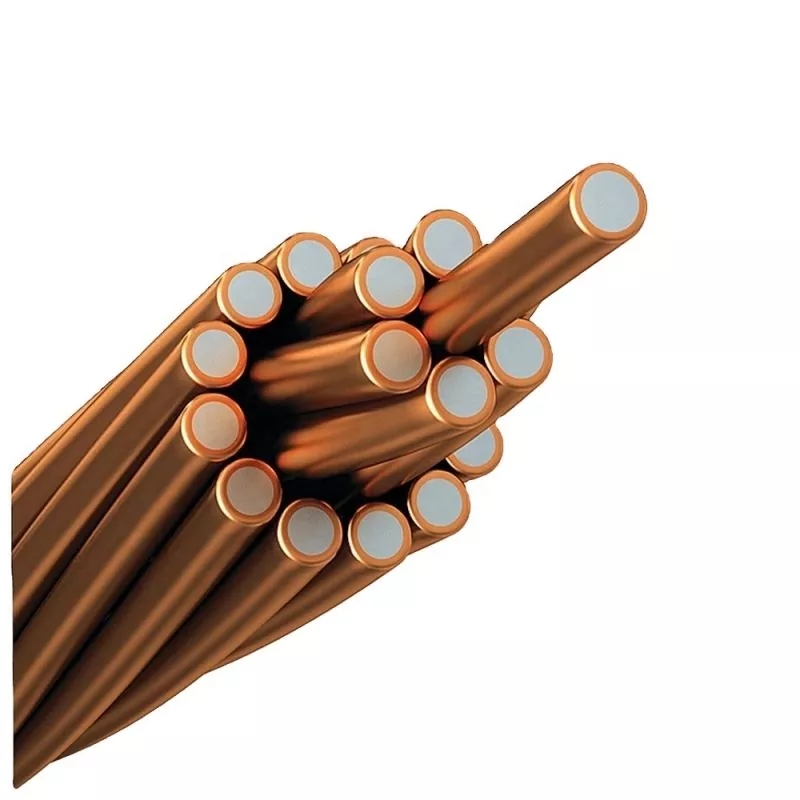

Bare conductor cable, also known simply as bare conductor or bare wire, is a type of electrical cable that consists of a conductor material without any insulating or protective layer. In other words, it is a single wire or a group of wires made from a conductive material, such as copper or aluminum, but lacks the outer insulation commonly found in most electrical cables. Bare conductor cables are primarily used for electrical power distribution and transmission applications, where the cable is suspended in the air on utility poles or towers.
Here are some key characteristics and uses of bare conductor cable:
1. Conductor Material: The most common materials used for bare conductor cables are copper and aluminum due to their excellent electrical conductivity and cost-effectiveness.
2. High Voltage Applications: Bare conductor cables are designed for high voltage electrical transmission and distribution systems. They are used to carry electricity over long distances from power generation stations to substations and then to distribution networks.
3. Overhead Lines: These cables are often installed overhead, supported by utility poles or transmission towers. The absence of insulation reduces the risk of electrical discharge or damage from exposure to environmental elements, such as rain, wind, and sunlight.
4. Low Cost: One of the advantages of bare conductor cables is their cost-effectiveness. Since they lack insulation and additional protective layers, they are typically less expensive than insulated cables.
5. Low Electrical Loss: Bare conductor cables have lower electrical losses compared to insulated cables. This makes them more efficient for transmitting electricity over long distances.
6. Resistance to High Temperatures: Bare conductors are designed to withstand high temperatures generated during the transmission of electrical power.
7. High Current Carrying Capacity: Due to their larger conductor size and absence of insulation, bare conductors can carry high currents, making them suitable for heavy-duty applications.
8. Galvanic Corrosion: When using dissimilar metals, such as copper and aluminum, in bare conductor cables, precautions must be taken to prevent galvanic corrosion, which can occur when the two metals come into contact. Special connectors and compounds are often used to mitigate this issue.
Common types of bare conductor cables include ACSR (Aluminum Conductor Steel Reinforced), AAC (All Aluminum Conductor), and AAAC (All Aluminum Alloy Conductor). These cables are typically categorized based on the construction and arrangement of the conductive wires within them.
Bare conductor cables play a critical role in the electricity transmission and distribution infrastructure, enabling the efficient and reliable supply of electrical power over long distances. They are a fundamental component of overhead power lines used by utility companies to provide electricity to homes, businesses, and industries.
