Components of an electric gate valve

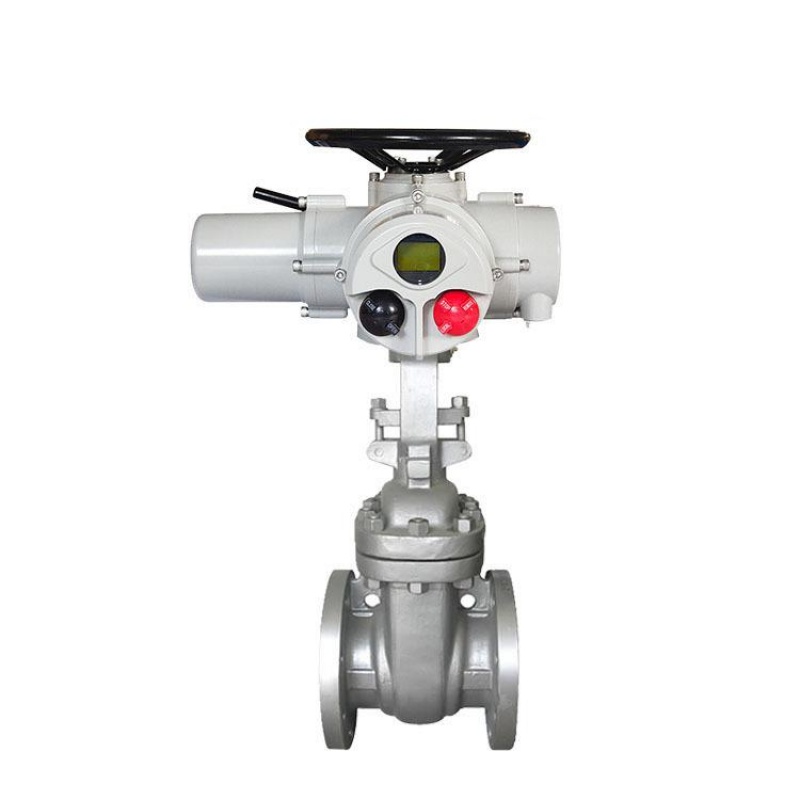

An electric gate valve is a type of valve used to control the flow of fluid in a piping system. It operates using an electric actuator, which allows for remote or automated control of the valve's opening and closing mechanism. Electric gate valves are commonly used in various industries, including water treatment, oil and gas, petrochemical, power generation, and other applications where fluid flow control is critical.

Key features and components of an electric gate valve include:

1. Body and Gate: The valve body is the outer casing that houses the gate, which acts as the movable element to control the flow of the fluid. When the gate is lowered into the valve body, it blocks the flow, and when raised, it allows fluid to pass through.

2. Electric Actuator: The electric actuator is the component responsible for opening and closing the gate. It is powered by an electric motor and can be controlled remotely using electrical signals.

3. Stem: The stem is a threaded rod connected to the gate. When the electric actuator rotates the stem, it raises or lowers the gate, allowing for flow control.

4. Seals: Gate valves have various seals to ensure a tight shut-off when the valve is closed, preventing leakage. Common sealing materials include rubber or elastomeric materials.

5. Position Indicator: Some electric gate valves have a position indicator to show the current status of the valve (open or closed).

Benefits of Electric Gate Valves:

- Remote Operation: Electric gate valves allow for remote or automated operation, making them ideal for applications where manual operation may be inconvenient or impractical.

- Precise Control: The electric actuator provides precise control over the valve's opening and closing, allowing for accurate regulation of fluid flow.

- Quick Response: Electric gate valves typically have fast response times, enabling rapid changes in flow conditions when needed.

- Versatility: Electric gate valves can handle a wide range of fluids, including water, steam, oil, and various chemicals.

It's important to select the right size and material for the electric gate valve based on the specific requirements of the application, including pressure, temperature, and the type of fluid being controlled. Proper maintenance and periodic checks are crucial to ensure the valve's reliability and prevent potential issues in the long term.
